운동 에너지 회복 시스템

운동학

복구 시스템 공급업체

Complete kinetic recovery systems for 4×4 brands, wholesalers, and recovery equipment suppliers, including Nylon 66 kinetic ropes, HMPE soft shackles, offroad recovery accessories, custom branding, and retail-ready packaging.

선택 과목: 차량의 견인 지점에 따라 견인 고리 및 견인 링을 추가할 수 있습니다.

제품 주요 특징

Nylon 66 Kinetic Rope Construction
Up to 30% Controlled Elongation
6,000–40,000 kg Breaking Strength Range
Heavy-Duty Protected Eye Loops
With Lightweight HMPE Soft Shackles
OEM 색상, 라벨 및 포장
배치 테스트 및 추적성 지원

4륜구동 및 오프로드 브랜드용 운동 에너지 회복 시스템 전문 제조업체

A kinetic recovery system is designed for extracting your vehicles stuck in mud, sand, snow, or loose terrain where a conventional static tow rope or strap may transfer excessive shock load to your vehicle and recovery points. The system normally combines a high-stretch Nylon 66 kinetic recovery rope with appropriately rated UHMWPE soft shackles and optional recovery hardware. Before sourcing, buyers should confirm vehicle weight range, required minimum breaking strength, rope diameter and length, recovery environment, and connection hardware. Kinetic ropes are intended for dynamic vehicle recovery rather than normal road towing or lifting.

Duracordix supplies OEM and private-label kinetic recovery systems for 4×4 accessory brands, recovery equipment distributors, wholesalers and overland suppliers. Available options include custom kinetic recovery ropes, HMPE soft shackles, recovery rings, hitches, gloves, storage bags, and retail-ready kits. It can be with customized colors, labels, packaging, specifications, and test documentation for your different target markets.

완벽한 운동 에너지 회복 시스템 구성 요소

최대 30%까지 연장,
탁월한 충격 하중 감소 효과
높은 파단 강도
높은 에너지 흡수
내마모성
고강도 아이 루프
보호 슬리브
맞춤 색상 선택 가능

고강도,
매우 가볍습니다.,
다루기 쉬움
녹슬지 않음
차량 친화적
보관하기 쉬움
맞춤 사이즈 제작 가능

선택하다 운동 회복 시스템

차량 중량

500~1,500kg

차량 중량

1~3톤

차량 중량

3~5톤

차량 중량

4~14톤 이상

기술 탭

Kinetic Rope Specification

소프트 샤클 사양

Vehicle Selection Guide

사용자 정의 옵션

Information Required for Quotation

Kinetic Rope Specification

지름	Inch	파괴 강도	길이	재료	건설
16mm	5/8인치	6,000 kg / 13,200 lb	6–9 m	나일론 66	Single / Double Braid
19 mm	3/4″	8,200 kg / 18,100 lb	6–9 m	나일론 66	Single / Double Braid
22 mm	7/8″	10,800 kg / 23,800 lb	6–9 m	나일론 66	Single / Double Braid
25 mm	1″	13,300 kg / 29,300 lb	6–9 m	나일론 66	Single / Double Braid
32 mm	1-1/4″	22,000 kg / 48,400 lb	6–9 m	나일론 66	Single / Double Braid
38 mm	1-1/2″	30,000 kg / 66,000 lb	6–9 m	나일론 66	Single / Double Braid
45 mm	1-3/4″	40,000 kg / 88,000 lb	6–9 m	나일론 66	Single / Double Braid

The Duracordix Nylon 66 kinetic recovery ropes are available in various diameters, lengths and breaking strengths for your ATV, SUV, pickup, expedition and heavy duty 4×4 recovery needs.

The custom size, color, eye protection, labeling and OEM packaging are available for wholesale and private-label projects.

소프트 샤클 사양

지름	길이	최소 파괴 하중
6mm	300mm	4,500kg
8mm	450mm	8,500kg
10mm	650mm	13,200kg
12mm	750mm	17,500kg
16mm	850mm	32,500kg

The soft shackles made of HMPE rope are perfect for a professional recovery systems of 4×4 vehicles. They are characterized by their high strength, low weight and perfect compatibility with kinetic recovery ropes. Different diameters, lengths, colors, and protective sleeves are available.

For wholesale, OEM and private-label labeling, we can offer you customized solutions of HMPE soft shackles for 4×4 recovery systems according to your target market, brand, packaging and full kits specification.

Vehicle Selection Guide

Target Vehicle	차량 중량	Suggested Rope	Typical Application
ATV / UTV / SxS	500–1,500 kg	16–19 mm	Lightweight recreational recovery
SUV / Jeep / Bronco	1.5–3 tons	19–25 mm	Sand, mud, snow recovery
Pickup / Full-Size 4×4	3–5 tons	25–32 mm	Heavy off-road recovery
Expedition Vehicle	5 tons+	32–38 mm	Loaded overlanding vehicle
Heavy Recovery	관습	38–45 mm+	Commercial / specialized recovery

사용자 정의 옵션

목	사용 가능한 맞춤 설정
로프 직경	관습
로프 길이	6 m / 9 m / Custom
색상	관습
Eye Size	관습
보호 슬리브	Polyester / Heavy-Duty Options
소프트 섀클	사이즈/길이/색상
심벌 마크	OEM Logo
제품 라벨	관습
바코드	사용 가능
User Manual	관습
휴대용 가방	관습
소매용 박스	관습
Kit Components	완전 맞춤 설정 가능

Information Required for Quotation

필수 정보	예
대상 차량 유형	ATV / SUV / Pickup
Vehicle Weight Range	1.5–3 tons
목표 시장	미국 / 유럽 연합 / 호주
로프 직경	명시된 경우
Required MBS	명시된 경우
로프 길이	20 ft / 30 ft
Kit Components	Rope + Shackles + Bag
브랜딩	OEM/프라이빗 라벨
포장	소매/대량
주문 수량	100개 / 500개 / 1,000개 키트
Certification / Testing	Required documents

What You Should Look for in a Kinetic Recovery System?

Your proper choice for a full kinetic recovery kit should always be that of a matching system rather than simply selecting an appropriate rope.

When it comes to distributors or even private label products, your initial purchasing factor should never be rope color or diameter. You need to start off with the type of vehicle you would be recovering, the load weight of the vehicle, recovery situations, and the expected severity of recovery.

An ultralight UTV recovery system and a heavy overlanding truck recovery system are going to require very different diameters, strength of rope and connectors. Using the same “one size fits all” rope in all categories is easier for inventory management, but it is also creating a bad product match and liability.

In a retail product line, we always suggest you having several product lines rather than just one big one.

Kinetic Recovery Rope vs Static Tow Rope

You should know the kinetic rope and the static tow rope or strap are two products that serve different purposes.

The kinetic rope works with elastic extension to mitigate the shock load generated when the helping vehicle gains momentum. So it is best for pulling out vehicles stuck in mud, loose sand, or snow.

The traditional polyester tow strap or UHMWPE tow line, which is less dynamic, is better used for your controlled towing while recovering.

You should consider this difference since your customers will be looking for “tow rope,” “recovery rope,” and “kinetic rope,” and assuming they are the same things. These products are not the same thing, and thus they should not be presented as such.

Your product line should therefore clearly distinguish between:

운동 에너지 회복 로프: Nylon, up to 30% elongation.
Static tow rope: Polyester or UHMWPE, low elongation.
Winch recovery rope: UHMWPE winch rope.

제게 필요한 운동 에너지 회복 로프의 크기는 얼마인가요?

일반적인 지침으로, 최소 파단 강도(MBS) 운동 로프의 길이는 일반적으로 최소한 이하여야 합니다. 2 times your vehicle’s GVM. 파단 강도가 낮은 견인 로프를 사용하면 안전상의 위험이 발생할 수 있으며, 반대로 오프로드 견인 로프가 너무 크면 의도한 운동 에너지 회복 효과를 충분히 발휘하지 못할 수 있습니다.

다음은 저희가 추천하는 일반적인 키네틱 로프 크기입니다.

SxS, UTV 및 ATV: 5/8인치 × 20피트 또는 30피트
SUV 및 중형 차량: 7/8인치 × 30피트
4륜구동 및 픽업트럭: 1-1/4인치 × 30피트
대형 오버랜딩 차량: 1-1/2인치 × 30피트

당신은 사용해야 합니다 20피트(6미터) 복구 공간이 제한적일 때는 견인 로프를 사용해야 합니다. 하지만 작업 거리가 충분할 때는 다른 방법을 선택할 수 있습니다. 30피트(9미터) 대형 차량 및 오프로드 복구의 경우 더 길어질 수도 있습니다.

차량이 깊은 진흙, 모래 또는 가파른 지형에 갇힌 경우에도 견인 작업에 필요한 힘이 커지므로 이 점을 고려해야 합니다.

차량에 맞는 사이즈를 아직 잘 모르시겠다면, 차량의 총중량(GVM)과 견인 용도를 알려주세요. 듀라코딕스 팀에서 고객님의 필요에 맞는 운동 에너지 로프와 완벽한 견인 키트를 추천해 드리겠습니다.

Why Nylon 66 Is Used for Kinetic Recovery Rope

When it comes to kinetic recovery capability, tensile strength alone doesn’t suffice.

Your rope needs to have the capacity of stretching, storing energy. It also need to be returned to its original shape and without acting like a rigid hmpe towing rope.

This explains why nylon 66 is commonly employed in your professional kinetic recovery ropes.

Duracordix kinetic ropes are made to undergo a controlled elongation up to around 30%, depending on construction and load you require.

Equivalent commercial kinetic recovery ropes usually have a specification of around 20% of elongation at nominal or working load and up to about 30% under heavier load.

However, “30% stretch” shouldn’t be the sole specification for you to go by. You can request the following details from Duracordix:
– the rope material,
– its construction,
– the minimum breaking strength,
– the elongation behavior,
– the eye design,
– 보호 슬리브,
– batch testing,
– labeling and traceability.

Two ropes of equal diameter can act differently in their performance because of differences in fiber quality, braiding, and finish. Talk with the Duracordix team to get your unique recommended kinetic recovery solution.

20 ft vs 30 ft Kinetic Recovery Rope: How to Choose

Your length of kinetic tow rope affects the application of the product and the ease with which the product is stored.

The two most common market lengths are about:
20 ft / 6 m
그리고
30 ft / 9 m

Other commercial competition in the market also has kinetic ropes that come in lengths of 20 ft and 30 ft. With shorter length, it’s very convenient for recovering your small vehicles. a longer length could increase the distance between the vehicle and allows for flexible recovery positions.

30 ft will be more easily marketable as your all-round off-road length, while 20 ft will work well for ATV, UTV and compact 4×4 applications. Duracordix can also produce custom lengths as per your specific regional market needs.

Single-Braid or Double-Braid Kinetic Rope?

Your rope construction influences the handling, abrasion resistance, diameter retention, and positioning of your product.

A single-braid Nylon kinetic rope will give you a relatively simple and flexible recovery. Double-braided construction involves braiding over the jacket. It provides you a more substantial feel and extra protection in challenging conditions.

Recovery products in the market tend to be double-braided nylon with reinforced or sleeved eyes. The construction should correspond to your price positioning for OEM customers. Simple construction is important for entry-level retail programs.

High-end recovery brands tend to focus on:
– protective cover
– reinforced eyes
– coating
– traceability tag
– test reports
– retail packaging

Why Eye Protection Matters?

As you may know the body of the rope does not always experience damage first.

Your recovery eyes come into contact with:
– synthetic soft shackles
– recovery points
– hitch receiver
– dirt
– sand
– vehicle surfaces

Eye protection is one of the key features of durability. Duracordix is able to offer you protective sleeves for eye loops and customize the length, material and color of sleeves.

Do not limit yourself by the strength of the rope only.
You should look at:
– construction of eye splices
– 보호 슬리브
– quality of stitches
– 내마모성
– labeling
– consistency in samples and production

For your private label product, these details are what your customer will see and touch first.

Why Soft Shackles Should Be Matched to the Rope?

A heavy-duty kinetic rope and a light-duty connector will not combine to form your heavy-duty recovery system.

HMPE soft shackles remain popular for good reason. They allow you to achieve a high strength-to-weight ratio compared to traditional steel counterparts.

When you buy recovery gear products, the question is not one of if a soft shackle is strong enough.

The real consideration is the following:

Is its MBL properly matched to the working load of the connected rope?

What is the category of the recovery application it will be used for?

Duracordix offers you a wide range of soft shackles in sizes from 6 mm to 16 mm with working loads from approximately 4,500 kg to 32,500 kg available. Custom options are also available upon request at Duracordix.

We recommend you specify rope and shackle requirements jointly to ensure that both your components share the same performance. You’d better not select them separately than as a complete system.

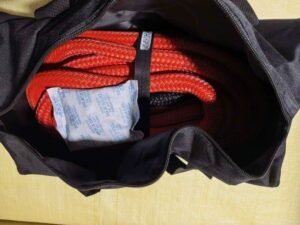

Building Your Complete Recovery Kit

A kinetic recovery rope may be sold as a standalone product; however, a full recovery system offers greater scope for differentiation for wholesalers and brands.

The key components may include the following:
Kinetic rope
HMPE 소프트 섀클
Recovery ring
Recovery hitch
장갑
Storage bag
Protective sleeves
Damper
Instruction Card

The kit’s content should be determined by the intended recipient rather than simply add accessories for the sake of additional SKUs.

For example, there may be the following variations:

ATV / UTV Kit
Compact rope
부드러운 족쇄
장갑
Small bag

SUV Kit
7/8″ kinetic rope
Shackles
장갑
Bag

Heavy 4×4 Kit
Large rope
Heavy shackles
Ring or hitch
Heavy bag

Such a categorization would be more effective in terms of facilitating a proper product line for the distributors like you.

OEM and Private Label Development

For customers like you, the performance of a product is only part of the project. The product must also harmonize with your brand and retail channel.

Duracordix can personalize:
로프 색상
rope size
보호 슬리브
부드러운 족쇄
logo
woven labels
warning labels
barcode
instruction cards
storage bag
retail box
complete kit combinations

Before the start of production, you need to check, in addition to technical specifications, the final retail configuration.

This avoids the frequent problem: having approved the rope, they find that the presentation, signage and product information are not compatible with the shelves or online catalog of the distributor.

Kinetic Recovery Rope Is Not a Lifting Rope

This needs to appear prominently. The kinetic recovery rope is not designed for your lifting operation.

Do not rig a kinetic recovery rope for:
overhead lifting
personnel lifting
static load suspension
normal road towing where elastic recovery is not required

This distinction serves to improve both safety and the perception of your product.As Duracordix, we would inform the customer of limitations as well as capabilities.

운동 에너지 회복 시스템의 비용을 결정하는 요인은 무엇일까요?

As you may know, for wholesale and OEM projects, the diameter is not the sole parameter that defines the price.

가격에 영향을 미치는 주요 요인은 다음과 같습니다.
나일론 섬유 등급,
로프 직경,
로프 길이,
한 가닥/두 가닥 땋기,
눈 구조,
보호 슬리브,
코팅 또는 마감 처리,
소프트 샤클 사양,
키트 구성품,
맞춤 색상,
로고 및 라벨,
소매 포장,
테스트 요구 사항,
수량 및 기타.

This is why comparing two quotations based only on diameter and length can be misleading. As cheaper options tend to miss out on protective eyes, tested MBS certificates, retail packing or even shackle fittings.

For serious distributorship programs, it is better for you to evaluate the full specification of the rope kit rather than focus on the price per piece.

How to Develop a Kinetic Recovery Product Line for Your Market？

For a new brand, we would usually start first from your customer and not from the factory catalog.

1. Target vehicle category
ATV
SUV
pickup
heavy 4×4
expedition

2. Target retail price
This determines the construction, accessories and packaging.

3. Number of SKUs
Too many similar sizes complicate the inventory.

4. Required safety positioning
Entry-level for recreational or professional recovery.

5. Sales channel
Amazon
dealer network
4×4 store
wholesale distributor
professional recovery

From that information, Duracordix can help you to build a more compact and coherent recovery product line. Not just simply provide you all rope sizes available.

Why Choose Duracordix for Kinetic Recovery Systems?

Complete Recovery System Development
Duracordix offers you comprehensive development solutions for 4×4 brands, distributors and wholesalers. we can help you engineer the complete kinetic recovery systems including Nylon 66 kinetic recovery ropes, HMPE soft shackles, protective sleeves, recovery accessories and customized packaging.

OEM & Private Label Solutions
From your rope specifications and colors to logos, labels, packaging and complete kit configurations, we enable the development of customized recovery products for your target market. We can help you realize your vision for a new off-road brand or the evolution of an existing product line.

Professional Rope Manufacturing Experience
Duracordix has the expertise in synthetic rope manufacturing to help you select the optimal fiber, rope design, eye protection and finishing process. Our team will work with you to define the rope diameter, breaking strength and construction to suit a range of recovery applications. It will be like ATV and SUV recovery to heavy-duty 4×4 systems.

Quality Control & Technical Support
We understand the need to control quality throughout the product realization process. In addition to supplying products, Duracordix offers specification confirmation, sample evaluation, production inspection and technical documentation services to help minimize the risk of any product specification prior to bulk orders.

Flexible Solutions for Global Markets
With different customer expectations, vehicle categories and packaging requirements for various markets, Duracordix works with you to define the recovery system best suited to the North American, European, Australian and other off-road markets. We offer solutions that address your needs of wholesale, retail and private-label distribution channels.

문의 보내기

자주 묻는 질문

운동 에너지 회복 시스템 FAQ

What is a kinetic recovery system?

A kinetic recovery system uses a high-stretch recovery rope plus a correctly rated connection equipment including soft shackles and optional recovery hardware. The nylon kinetic rope is designed to stretch during your recovery. It can reduce sudden shock load and the resulting peak pulling force is progressively transferred.

This product is primarily used to recover your vehicles stuck in mud, sand, snow or loose surface and not for normal towing purposes.

Can you manufacture complete kinetic recovery systems for 4×4 brands?

Yes. Duracordix supplies you complete kinetic recovery systems including Nylon 66 kinetic recovery ropes, HMPE soft shackles, recovery accessories, storage bags and customized packaging. We help your 4×4 brands, our distributors and wholesalers to develop complete recovery product lines. Not just supply the individual rope and components.

OEM 및 자체 브랜드 운동 에너지 회복 제품을 제공하시나요?

Yes. Duracordix supports OEM and private label to match your projects. With small MOQs like 50~100 kits, we can custom-make your snatch rope size, colors, labels, logos, and recovery kits. The retail-ready and unique packaging is also available.

What can be customized for Kinetic recovery system?

주문 수량 및 프로젝트 요구 사항에 따라 Duracordix는 필요한 로프 직경, 길이, 색상, 보호 슬리브, 라벨, 로고, 보관 백, 포장 및 전체 키트 구성으로 운동 에너지 회수 제품 라인 전체를 맞춤 제작할 수 있습니다.

저희가 완벽한 복구 제품 라인을 개발하는 데 도움을 주실 수 있나요?

4륜구동 오프로드 차량 복구 솔루션 제공업체인 Duracordix는 고객 여러분이 다른 시장에서 다양한 고객층을 대상으로 사업을 운영하고 있음을 잘 알고 있습니다. Duracordix 팀은 운동 에너지 복구 로프, 소프트 shackles, 복구 링, 복구 히치, 보관 가방 및 기타 구성 요소를 선택하고 구성하여 목표 시장과 고객의 요구에 맞는 최적의 복구 키트를 제작할 수 있도록 도와드립니다.

저희 시장에 적합한 로프 크기를 추천해 주시겠습니까?

Yes, the Duracordix team understand different countries may require different product sizes and colors etc. so we can recommend you a suitable kinetic recovery system with right rope size, colors, or other items together based on your vehicle type, approximate vehicle weight, recovery conditions and required performance.

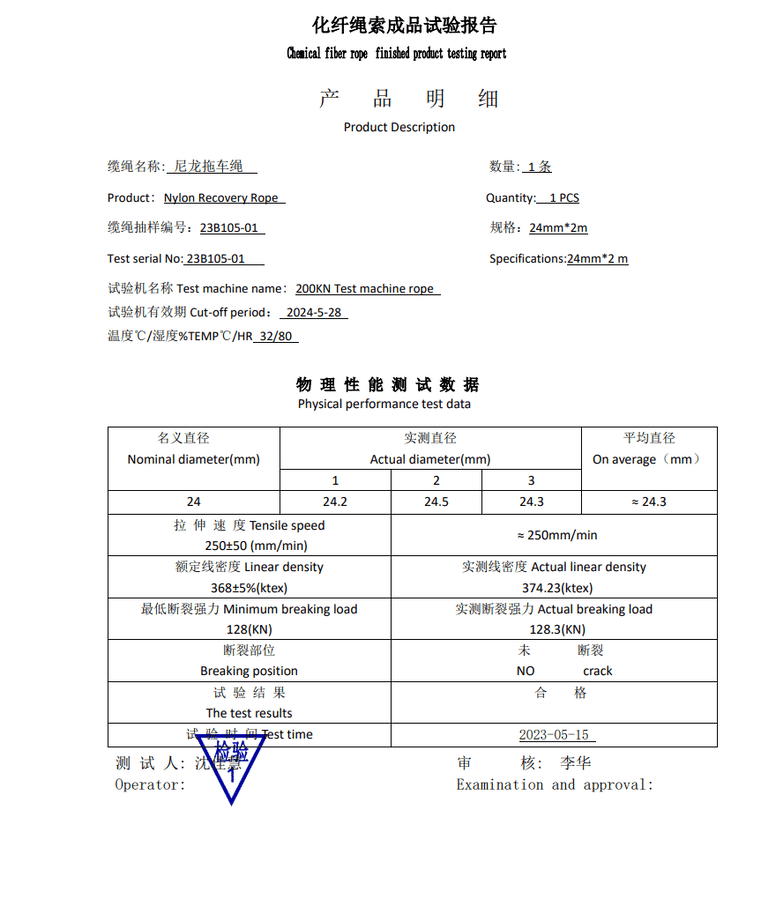

테스트 및 품질 관리 서비스를 제공하시나요?

Yes. Duracordix controls key material sourcing and coordinates production with qualified manufacturing partners, and we do the coating process by ourselves(2~3hours higher than industry standard) and final splicing, quality inspection and testing. Test documentation can be discussed according to your project requirements.

대량 주문 전에 샘플을 제공해 주실 수 있나요?

네, 투자하시기 전에 제품 품질에 대해 걱정하실 수 있다는 점을 잘 알고 있습니다. 저희는 실제 테스트 영상이나 테스트 보고서를 제공해 드릴 뿐만 아니라, 직접 샘플을 보내드려 평가해 보실 수 있도록 도와드릴 수 있습니다. 고객님의 필요에 맞는 사이즈와 솔루션을 기꺼이 추천해 드리겠습니다.

What's the MOQ For OEM orders?

If you’d like to make your own brand, we’d like to support you from a small MOQ like 50-100 kits at the first begining. Contact us with your target product and quantity, and we will recommend the most practical solution

귀사는 유통업체 및 도매업체의 대량 주문을 지원합니까?

듀라코딕스는 유통업체 및 도매업체와의 협력을 통해 판매 네트워크를 지속적으로 확장하고자 합니다. 당사는 경쟁력 있는 가격, 대량 구매 할인, 그리고 파트너사의 성장을 지원하는 다양한 파트너십 지원 프로그램을 제공합니다. 지금 바로 연락하셔서 파트너십 기회에 대해 논의해 보세요.
