Heavy Vehicle Recovery System

Heavy

Vehicle Recovery System

Heavy-duty recovery systems for Your trucks, construction equipment, mining vehicles, agricultural machinery and commercial fleets, combining high-strength recovery ropes, soft shackles, straps and recovery hardware for demanding recovery operations

Engineered for Heavy-Duty Vehicle Recovery

Heavy Recovery Ropes up to 120 mm+
Breaking Strength up to 90,000 kg+
Nylon 66 & UHMWPE Rope Options
Soft Shackles up to 100,000 kg MBL
Kinetic & Winch Recovery Configurations
Heavy-Duty Eyes & Protective Sleeves
OEM Colors, Labels & Packaging

Heavy Vehicle Recovery Solutions for Commercial & Industrial Fleets

Heavy-duty recovery systems demand more than the use of a larger rope. Commercial trucks, mining vehicles, construction equipment and agricultural implements can involve exceptionally high pulling forces, particularly if you stuck in a gradient, mud, soft ground. Before you select an appropriate system, you must evaluate the gross vehicle weight, anticipated resistance, pulling procedure, anchorage configuration, angle of recovery, attachment fittings and factor of safety in advance. Based on your application, you should need kinetic recovery, controlled winching or static towing rather than a single universal rope.

Duracordix supplies heavy vehicle recovery systems for your recovery equipment brands, fleet operators, towing companies, mining and construction customers. Our solutions can combine Nylon 66 kinetic recovery ropes, UHMWPE winch and tow ropes, HMPE soft shackles, heavy-duty straps, recovery rings, blocks and protective components, with custom strength ratings, dimensions, branding and packaging available for OEM and your project-based supply.

Complete Heavy Vehicle Recovery System Components

Elongation up to 30%,
Excellent shock load reduction
High Breaking Strength
High energy absorption
Abrasion Resistant
Heavy-Duty Eye Loops
Protective Sleeves
Custom Colors Available

High Strength,
Extremely Lightweight,
Easy to Handle
No Rust
Vehicle-Friendly
Easy to Store
Custom-Made Sizes Available

Choose Your heavy Recovery System

32–52 mm Nylon recovery ropes
16mm~24mm Soft Shackle x 2units
10-18 mm UHMWPE Winch Rope
Recovery Ring / Rated Connector
Gloves
Storage Bag

Vehicle Weight

8–25 tons

64–120 mm Nylon Recovery Rope
2 × 30–36 mm HMPE Soft Shackles
18–32 mm UHMWPE Winch Rope / Custom
Engineered Heavy Connectors
Gloves
Storage Bag

Vehicle Weight

40–300+ tons

52–80 mm kinetic Recovery Rope
2 × 24–36 mm HMPE Soft Shackles
16–28 mm UHMWPE Winch Rope
Recovery Ring / Snatch Block
Gloves
Recovery Bag

Vehicle Weight

15–80 tons

Vehicle Weight

8–40 tons

Technical Tabs

Kinetic Rope Specification

Soft Shackle Specification

Recovery Method Selection

Typical Product Capability Range

Customization Options

Information Required for Quotation

Kinetic Rope Specification

Diameter	Circumference	Breaking Strength	Application Class
32 mm	4″	225 kN	Heavy Vehicle
36 mm	4-1/2″	285 kN	Heavy Vehicle
40 mm	5″	352 kN	Heavy Truck
44 mm	5-1/2″	420 kN	Heavy Truck
48 mm	6″	500 kN	Heavy Commercial
52 mm	6-1/2″	600 kN	Extra-Heavy
56 mm	7″	690 kN	Extra-Heavy
60 mm	7-1/2″	780 kN	Extra-Heavy
64 mm	8″	900 kN	Industrial Recovery
72 mm	9″	1,090 kN	Industrial Recovery
80 mm	10″	1,344 kN	Mining / Industrial
88 mm	11″	1,626 kN	Mining / Industrial
96 mm	12″	1,950 kN	Heavy Industrial
104 mm	13″	2,320 kN	Heavy Industrial
112 mm	14″	2,670 kN	Heavy Industrial
120 mm	15″	3,050 kN	Specialized Heavy Recovery

Soft Shackle Specification

Diameter	Length	Minimum Breaking Load	Breaking Load
16 mm	850 mm	32,500 kg	≈71,650 lbs
18 mm	Custom	43,000 kg	94,600 lbs
20 mm	Custom	48,400 kg	106,480 lbs
22 mm	Custom	57,000 kg	125,400 lbs
24 mm	Custom	66,900 kg	147,180 lbs
28 mm	Custom	86,500 kg	190,300 lbs
30 mm	Custom	98,000 kg	215,600 lbs
32 mm	Custom	110,000 kg	242,000 lbs
34 mm	Custom	120,000 kg	264,000 lbs
36 mm	Custom	133,000 kg	292,600 lbs

Recovery Method Selection

Recovery Situation	Recommended Method	Typical Rope Type
Deep mud / soft ground	Kinetic Recovery	Nylon
Controlled extraction	Winch Recovery	UHMWPE
Disabled vehicle towing	Static Recovery	UHMWPE / Polyester
Heavy truck recovery	Kinetic / Static	Heavy Nylon
Construction machinery	Winch / Static	UHMWPE
Directional recovery	Redirected Winch Pull	UHMWPE + Ring / Block
Mining / industrial recovery	Engineered Recovery	Project-Specific

Typical Product Capability Range

Application	Typical Rope Range	Breaking Strength Range	Recovery Type
Heavy 4×4 / Pickup	32–40 mm	225–352 kN	Kinetic / Winch
Commercial Truck	40–52 mm	352–600 kN	Kinetic / Static
Heavy Truck / Expedition	48–64 mm	500–900 kN	Kinetic / Static
Agricultural Machinery	48–64 mm	500–900 kN	Kinetic / Static
Construction Equipment	52–80 mm	600–1,344 kN	Winch / Static / Engineered

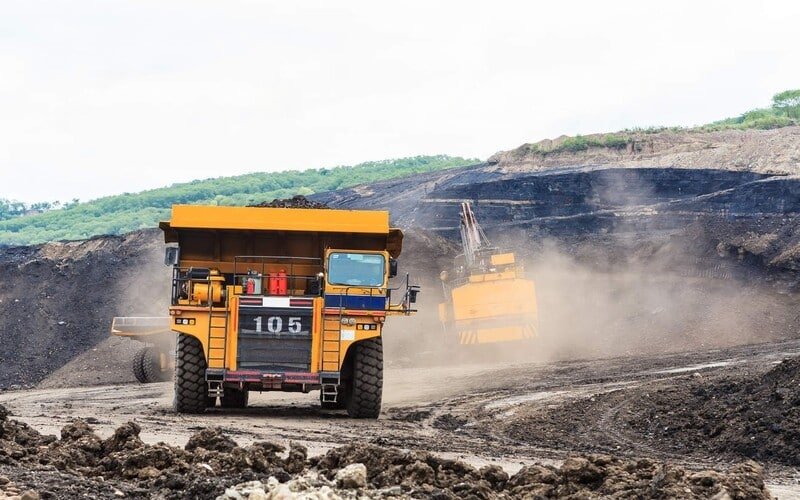

Mining Vehicle	64–96 mm	900–1,950 kN	Engineered Recovery
Heavy Mining / Industrial	80–120 mm	1,344–3,050 kN	Engineered Recovery

Customization Options

Item	Available Customization
Rope Material	Nylon / UHMWPE / Polyester
Rope Diameter	Up to 120 mm / Custom
Rope Length	Custom
Breaking Strength	Project-Specific
Eye Size	Custom
Protective Sleeve	Heavy-Duty Options
Rope Color	Custom / High Visibility
Soft Shackle	16–36 mm / Custom Length
Soft Shackle Color	Single / Two-Color
Recovery Strap	Width / Length / Strength
Labels	OEM / Warning / Rating
Batch Identification	Available
Carry Bag	Custom
Packaging	Industrial / Retail
Complete Kit	Fully Configurable

Information Required for Quotation

Required Information	Example
Vehicle / Equipment Type	Truck / Loader / Excavator
Gross Vehicle Weight	40 tons
Estimated Recovery Load	If known
Recovery Method	Kinetic / Winch / Static
Ground Condition	Mud / Sand / Slope
Recovery Angle	Straight / Redirected
Anchor Arrangement	Vehicle / Ground Anchor
Required Rope Length	10 m / 20 m / Custom
Required MBL	If specified
Connection Hardware	Shackles / Eyes / Pins
Target Market	USA / EU / Australia
Order Quantity	50 / 100 sets
Testing / Documentation	Required Reports

Heavy Vehicle Recovery Is a System Sizing Problem

One of the most common mistakes in heavy vehicle recovery is choosing a rope size based only on your vehicle weight.

Your 30-ton truck on firm level ground doesn’t impose the same rope load as the same truck deep in a mud hole or on a steep grade.

Recovery load can be affected by:
– Gross weight
– Ground resistance
– Mud suction
– Soft soil
– Slope
– Locked wheels
– Mechanical damage
– Recovery direction
– Anchor geometry
– Dynamic loading
– Recovery-point strength

For this reason, Duracordix recommends sizing the full recovery system, not just selecting rope diameter based on gross weight.

Kinetic, Winch or Static Recovery?

Kinetic Recoery

Kinetic recovery uses the principle of rope elongation to absorb, store and progressively release energy.

Duracordix Nylon recovery rope provides you a guaranteed elongation of up to 30%. It offers you controlled energy absorption for appropriate recovery operations.

Kinetic recovery may be appropriate if:
– The recovery vehicle is able to produce controlled movement
– Ground resistance is high
– Appropriate recovery points exist
– Dynamic recovery is permitted

It should not be used automatically for the recovery of all heavy equipment.

Winch Recovery

Winch recovery delivers you controlled pulling force
Ideal for:
-Heavy construction equipment
-Mining vehicles
-Steep terrain
-Restricted working space
-Directional recovery
-Precision extraction

UHMWPE winch rope is perfect for such applications due to it’s high strength to weight ratio and minimal stretch characteristics

Static Recovery

Static recovery is utilized for your controlled towing/recovery operations where dynamic energy transfer is not required

Applications include:
-Disabled vehicle towing
-Industrial pulling operations
-Equipment repositioning
-Heavy fleet recovery

Why Vehicle Weight Alone Is Not Enough?

The heavy recovery load may exceed the weight of your vehicle due to several factors:

– mud suction
– deep rutting
– soft ground
– uphill gradient
– locked wheels
– damaged drivetrain
– poor recovery angle
– multiple axles

So your 40-ton vehicle should not be matched directly with the rope by simply applying a factor to the weight.

The expected recovery force should be estimated before choosing your rope and system components.

Recovery System Strength Is Limited by the Weakest Component

A 3,050 kN rope does not create a 3,050 kN recovery system if another critical component has a lower rating.

The complete system you have can consist of: –
• Recovery rope
• Soft shackles
• Steel connection hardware
• Vehicle recovery points
• Hitch receivers
• Recovery straps
• Winches
• Recovery rings
• Snatch blocks
• Anchors

All your critical components should be reviewed together and the strength should be match with each other.

How to Select Heavy Nylon Recovery Rope?

Duracordix provides you a comprehensive range of heavy-recovery products:
32–48 mm
225–500 kN

Suited for your heavy vehicle and commercial truck operations.
52–72 mm
600–1,090 kN

Suitable for your extra-heavy trucks, construction vehicles and industrial recovery.
80–120 mm
1,344–3,050 kN

Designed for your heavy mining, industrial and specialty recovery applications.

Your final choice must always be based on calculated recovery loads and approved system ratings.

Heavy-Duty HMPE Soft Shackles

For heavy recovery applications, Duracordix offers you soft shackles between 16 mm and 36 mm.

The range of capacities is between:
32,500 kg MBL → 133,000 kg MBL
The maximum of 36 mm achieves:
292,600 lbs breaking load

Our heavy-duty soft shackles can be made in various lengths and colors based on your needs.

To choose a size consider:

– The condition of the surface against which it will contact.
– The bending radius
– The shape of the connection.
– The rope strength
– The recovery point rating
– The rating of the anchor

Why Protective Sleeves Matter?

When your recovery rope at high loads, localized abrasion is becoming extremely important.

Common points of high-wear include:
– Rope eyes
– Recovery pins
– Shackles
– Fairleads
– Vehicle recovery points
– Frames
– Ground contact

Heavy-duty sleeves are useful to protect your synthetic ropes at these points.

Construction Equipment Recovery

Your construction machinery can get stuck in:
– Mud;
– Trenches;
– Soft ground;
– Uneven worksites.

Your large excavators, loaders and dump trucks require controlled recovery.winch or static recovery may therefore be preferable to aggressive kinetic recovery.

Agricultural Machinery Recovery

Your agricultural machinery often has to operate in:
– Wet soil
– Soft fields
– Deep ruts
– Mud

Duracordix can custom configure your recovery systems for:
– Tractors
– Harvesters
– Sprayers
– Agricultural trailers

OEM Heavy Recovery Product Development

Duracordix can produce customization according to your following features:
– Rope material
– Diameter
– Length
– Breaking strength
– Eye dimensions
– Protective sleeves
– Rope colors
– Soft shackles
– Soft shackle colors
– Labels
– Batch ID
– Carry bags
– Packaging

It is recommended that prior to the cosmetic branding of your professional recovery products. The technical aspects of the system be established.

Testing & Traceability

Depending on your project’s requirements, the supporting documentation may include:

– Material specification
– Breaking strength test results
– Batch identification
– Dimensions
– Splice inspection
– Termination information
– Accessory rating
– Packaging identification

What Determines Heavy Recovery System Cost?

The cost of your heavy recovery system is determined by:

– Fiber Material
– Rope Diameter
– Rope Length
– Required Breaking Strength
– Rope construction
– Protective sleeves
– Splicing
– Soft shackles
– Hardware
– Testing
– Documentation
– Packaging
– Quantity

Therefore, it is essential for you to consider the full system specification rather than focusing on the price of just one component, the rope.

Send Your Inquiry

FAQ

Heavy Vehicle Recovery System FAQ

Can you provide samples before bulk production?

Yes. Sample evaluation can be arranged depending on your product type, rope size and customization level. For standard configurations, samples may be prepared for your dimensional, material and handling evaluation. For large-diameter or project-specific heavy recovery products, it is advisable to confirm sample feasibility first. Since production, testing and freight costs may be significantly higher than for a standard 4×4 recovery product.

What testing documents can be provided with heavy recovery products?

Depending on your project requirements, Duracordix can support you breaking-strength test reports, dimensional inspection records, material information, batch identification and other production or quality documents. Third-party testing can also be discussed when you require.

The exact documentation package should be confirmed before production so that the required test scope, reporting format and traceability requirements can be included in your project plan.

Can each rope / recovery component be batch-traced?

Yes. Batch identification and product label can be added for your fleet, distributor and industrial projects with traceability requirements. The label can include information like size, rated strength, batch number or other agreed information. This is especially valuable for your customers that need to manage multiple recovery kits, inspection schedules or replacement records. especially for your fleets, mining sites and construction projects.

What is the MOQ for customized heavy recovery systems?

It depends on your rope diameter, construction, accessory configuration, color, label and packaging requirements. Generally standard products have more flexible MOQ(like 50~100pcs). but fully customized systems (OEM) may be subject to higher MOQ(like 200~500pcs) For very large-diameter industrial ropes or special connection hardware. our MOQ may also be affected by production line requirements and material specifications. Duracordix can provide you MOQ confirmation after studying your requested specification.

Can you help us develop a complete recovery product line?

Duracordix, as a 4×4 off-road recovery solution provider, we know you’re operating in a different market and serving different customer groups. The Duracordix team can help you select and configure kinetic recovery ropes, soft shackles, recovery rings, recovery hitches, storage bags, and other components to create the right recovery kit for your target market and customers’ needs.

Can different recovery products be combined in one order?

Yes. On your given order, we’re able to combine different sizes of rope, soft shackles, winch ropes, static ropes, protective sleeves, straps and hardware.

This is especially useful to distributors, fleet operators, and professional recovery companies looking to get multiple types of recovery products at once. Rather than having to specify a single “universal” configuration.

Orders can also be combined or separated with unique labeling and packaging for your simpler inventory control.

How long does production and delivery typically take?

It depends on your diameter of the rope, quantity, customization, testing requirements and packaging. In most cases, standard products will be produced more quickly than large-diameter or highly customized recovery systems. Projects requiring special splices, protective sleeves, third-party testing or custom packaging may require additional time for production. With that said, shipping time will also depend on your location and whether bulk shipping or individual recovery product packaging is required.

We’d be happy to provide you a projected production and delivery window for your specific order upon specification confirmation.
