Complete winch recovery systems for 4×4 OEM brands, distributors and professional recovery gear suppliers, including our UHMWPE winch ropes, soft shackles, tree saver straps, recovery rings and custom recovery kits.

Product Key Features

UHMWPE Winch Ropes from 6–18 mm
Breaking Strength up to 16,000 kg
Custom Length Options
DMX coating For Better Abrasion Resistance
Lightweight HMPE Soft Shackles
OEM Colors, Labels & Packaging
Batch Testing & Traceability Support

Your Winch Recovery System Manufacturer for 4×4 & Off-Road Brands

A winch recovery system is intended for controlled vehicle extraction when your 4×4, UTV, SUV or recovery vehicle stuck in mud, sand, snow, steep ground, or oother difficult conditions. Winching allows for using controlled mechanical pulling force from a vehicle-mounted or portable winch to extract the immobilized vehicle progressively. You should consider the weight of your vehicle, the working load limit, the winch’s pulling capacity. In the meantime, you should also think about rope size and length, minimum breaking load, anchoring method, recovery angle, and necessary accessories. A winch recovery system is best suited for slow and steady pulling and is more appropriate for self-recovery rather than for dynamic kinetic recovery.

Duracordix offers OEM and private-label winch recovery systems for off-road vehicle manufacturers, distributors, wholesalers, and professional recovery gear companies. Our portfolio includes UHMWPE synthetic winch rope, HMPE soft shackles, tree saver straps, recovery rings, snatch blocks, winch dampers, gloves, and custom storage kit bags. All products can be customized according to your specific requirements, logo, packaging, and documentation for global markets.

Complete Winch Recovery System Components

Choose Your Recovery System

Vehicle Weight

500 – 1,500 kg

Vehicle Weight

1 – 3 Ton

10mm x 30m Winch Rope
2 x 10mm Soft Shackle
105mm x 3m Tree Saver
Snatch Block (10T)
Winch Damper
Recovery Ring
Gloves

Vehicle Weight

3 – 5 Ton

12mm x 40m Winch Rope
2 x 12mm Soft Shackle
105mm x 3m Tree Saver
Snatch Block (25T)
Winch Damper
Recovery Ring
Recovery Gloves

Vehicle Weight

4 – 14 Ton+

Technical Tabs

HMPE winch Rope Specification

Soft Shakcle Specification

Tree Saver Strap Specification

Snatch Block Specification

OEM & Customization

Project Information Required

HMPE winch Rope Specification

Vehicle Weight	Rope Diameter	Rope Length	Minimum Breaking Load
0.8–1.2 Ton	6 mm	15–20 m	3,000 kg
1–1.5 Ton	8 mm	20–25 m	4,000 kg
2–3 Ton	10 mm	20–30 m	8,000–9,000 kg
3–4 Ton	12 mm	30–40 m	11,000–12,000 kg
4–5.5 Ton	14 mm	30–45 m	14,000–16,000 kg

Soft Shakcle Specification

Size	Diameter	Length	Minimum Breaking Load
1/4″	6 mm	300 mm	4,500 kg
5/16″	8 mm	450 mm	8,500 kg
3/8″	10 mm	650 mm	13,200 kg
1/2″	12 mm	750 mm	17,500 kg
5/8″	16 mm	850 mm	32,500 kg

Tree Saver Strap Specification

Width	Length	Minimum Breaking Strength	Color
50 mm	2 m	5,000 kg	Custom
60 mm	3 m	8,000 kg	Custom
75 mm	3 m	10,000 kg	Custom

Snatch Block Specification

Duty	Vehicle Weight	Rope Size	WLL
Light Duty	1–2 Ton	8–10 mm	4 T
Medium Duty	2–4 Ton	10–12 mm	8 T
Heavy Duty	4–6 Ton	12–14 mm	10 T
Extra Heavy Duty	6–12 Ton+	14–18 mm	25 T

OEM & Customization

Item	Available Customization
Winch Rope Diameter	Custom
Rope Length	Custom
Rope Color	Custom
Coating	DMX / Custom
Eye / Termination	Custom
Protective Sleeve	Custom
Soft Shackle	Size / Length / Color
Tree Saver Strap	Width / Length / Color
Recovery Ring	Size / Finish
Logo	OEM / Private Label
Product Label	Custom
Barcode	Available
Carry Bag	Custom
Retail Box	Custom
Complete Kit	Fully Configurable

Project Information Required

Required Information	Example
Target Vehicle Type	UTV / SUV / Pickup
Vehicle Weight	2–3 tons
Winch Capacity	9,500 lb / 12,000 lb
Rope Diameter	If specified
Rope Length	80 ft / 100 ft
Required MBL	If specified
Recovery Accessories	Shackle / Tree Saver / Ring
Target Market	USA / EU / Australia
Branding	OEM / Private Label
Packaging	Retail / Bulk
Order Quantity	100 / 500 / 1,000 kits
Testing Documents	Required reports

What You Should Look for in a Winch Recovery System?

A winch recovery system must be bought as a system, not a single rope. Your winch, synthetic winch line, shackles, tree saver strap, recovery ring or snatch block and attachment points all need to have compatible working load atings.

For 4×4 brands and distributors: First you need to decide on your target category and capacity. A UTV with a 3,500-4,500 lb winch does not need the same rope and hardware as a 12,000 lb winch recovery system.

For retail product development, we advise to segment your category, rather than selling one ”universal” recovery kit.

UHMWPE Winch Rope vs Steel Cable

UHMWPE/HMPE synthetic winch rope is popular in the off-road community. its advantages like excellent strength-to-weight ratio, ease of use and resistance to corrosion and improved safety (with less recoil in the event of rope failure)

However, buyers should not blindly favor synthetic materials over steel cables: In some applications, steel rope is still superior to synthetic rope. For example, where extreme abrasion, sharp edges or high temperatures are present.

For 4×4 retailers and overlanding enthusiasts: Synthetic rope offers you the best balance of handling, spool weight and ease of use. It’s ideal for winch recovery systems. Industrial-grade steel cable should be required in particularly harsh conditions. However, it’s not suitable for regular winching recovery use.

Why is UHMWPE Used for Synthetic Winch Rope?

The main reason is simple: the ratio of tensile strength to weight.

A winch recovery rope needs to have high tensile strength, low stretch, low water absorption and be easy to handle on the winch drum. All of these can be found in UHMWPE fiber rope. Most professional-grade synthetic rope products like Duracordix are made from 12-strand HMPE or UHMWPE with an abrasion-resistant coating.

When you’re choosing fiber material, you should consider about the rope construction, material grade, coating formular, diameter, breaking strength(MBL), splice design, sleeve and batch-certification.

Two winch lines in same diameter of 10 mm can have completely different characteristics due to differences in your fiber grade, coating and splice technology.

How to Choose the Diameter of Synthetic Winch Rope?

Choosing the diameter of synthetic winch rope is not as simple as dividing the vehicle weight by the winch pull rating.

The final diameter should depend on:
• winch rated line pull
• loaded weight of the vehicle
• gradient of the obstacle being recovered
• mud or suction resistance
• the angle of recovery
• the drum capacity
• and the safety factor

Currently, Duracordix offers winch rope for light vehicles (6 mm) up to heavy-duty 4×4 (14 mm).

To specify the diameter, you’d better follow this algorithm like below:

Vehicle Category → Winch Capacity → Required MBL → Rope Diameter → Rope Length

Not simply Vehicle Category → Diameter.

50 ft, 80 ft or 100 ft Winch Rope? What Length to Choose?

The length of the rope also affects the performance of the winch recovery system.

In off-road recovery, the most popular lengths are:
• 50 ft
• 80 ft
• 100 ft

A shorter length reduces the wrap on the winch drum, which is better for winches with a short spool.

On the other hand, the recovery range is limited compared to longer ropes.

You should note the recommended length should also be specified for the target model or winch capacity.

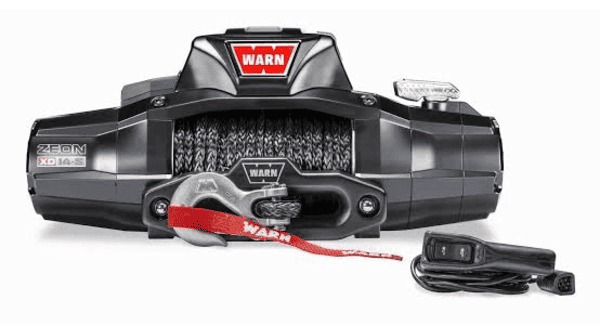

Why Drum Capacity is Important For Winching Performance?

When the winch rope is spooled on the winch drum, the radius of the drum increases. This will reduce the mechanical advantage and affects the pulling power of the winch. This is why the diameter and length of the winch rope should be chosen based on your drum capacity.

It is a mistake for you to choose the maximum possible rope diameter for a winch drum. As the increased surface area will negatively affect the performance of the winch on the outer turns of the spool.

Meanwhile, it will shorten the rope length and affect your recovery range.

Why Does UHMWPE/HMPE Winch Rope Need a Coating?

You might think UHMWPE fiber rope does not require a coating, as it has excellent abrasion resistance, but this is not the case.

Any winch rope will be subjected to severe friction forces during your recovery operations:
• against fairleads
• rocks
• sand
• the winch drum itself
• vehicle surfaces

A special coating will increase the toughness of the rope, reducing internal and external abrasion.

Duracordix uses a DMX coating for its UHMWPE rope products. It can improve the abrasion resistance, UV resistance and provide vairous color options for your winch rope.

When you purchase synthetic winch rope, the coating should be specified as a separate criterion.

Why a Drum-End Heat Sleeve Matters For Synthetic Winch Ropes?

High temperatures in winching operations can damage your synthetic winch rope.

A special heat-resistant sleeve on the drum end of the rope (usually 1~1.5 m, depending on the total length of the rope) will protect it from the effects of friction. Sleeves also serve to reduce abrasion of your rope against the winch drum.

When you develop your own private-label product, the length of the heat sleeve, its material and its installation instructions should be specified in the technical specifications (Duracordix can give you our recommendation based on your need). Not just added at the final stage of production.

Hawse Fairlead or Roller Fairlead for Winching?

A synthetic winch rope is best used with a hawse fairlead made of smooth aluminum. Such a fairlead provides you the best possible radius for the rope without damaging it.

Roller fairleads can also be used, but only when their surface is smooth and do not damage the rope while you’re using them.

When you’re selecting a fairlead for an off-road recovery system, it is important to specify this in the technical documentation for the winch. A rough surface of the fairlead will reduce the service life of the synthetic rope, regardless of its strength.

Why Are Soft Shackles Necessary for Winch Recovery?

When choosing a winch recovery system, you should not forget about the importance of connecting hardware like shackels.

A winch rope with a high MBL rating should not be used with cheaper steel shackles. Soft shackles made of HMPE rope have high strength, are lightweight. They increasingly being used as a complement to your winch recovery systems.

Currently, Duracordix offers you a full range of soft shackles from 6 mm to 16 mm with a MBL up to 32,500 kg.

When selecting a soft shackle for a winch system, it is important to choose a size corresponding to the rope diameter. In addition, the MBL of the shackle should be higher than the breaking strength of your existing winch rope. Duracordix recommended you choose the shackle based on the MBL, not the diameter of the rope.

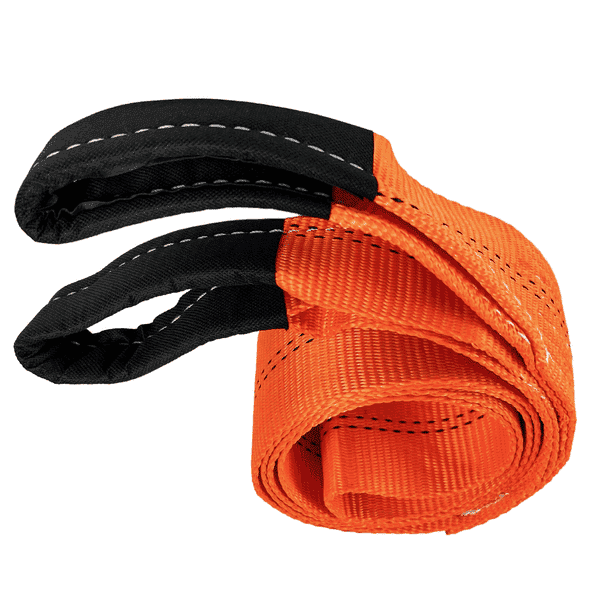

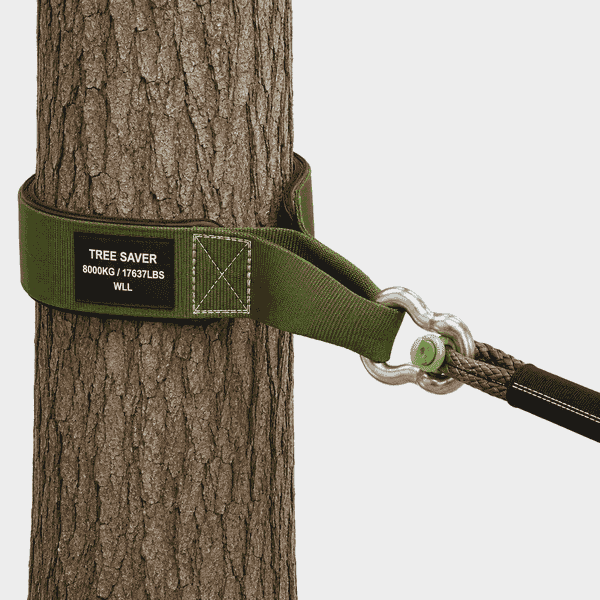

How to Choose a Tree Saver Strap for a Winch Recovery System?

The tree saver strap is not just an accessory for an off-road winch recovery system. When you’re using a tree saver, it can distributes the load much more evenly on the surface of the anchor point. In addition, a tree saver strap is necessary to prevent the winch rope from cutting into the tree.

When you’re choosing a tree saver, pay attention to its width, length, minimum breaking strength, eye reinforcement, weaving method, stitching technology and labeling. The wider the tree saver, the greater the surface area, which distributes the load more evenly. However, this also depends on the strength of the anchor point.

Recovery Ring vs Snatch Block: What to Choose for an Off-Road Winch?

A snatch block and a recovery ring are different recovery gear even though they can both change the direction of the pull. A snatch block is a more traditional tool that uses rolling friction, while the recovery ring uses sliding friction.

For your use in off-road recovery systems, recovery rings are popular among recreational and overlanding users for their compact size and light weight. For more serious applications, you should pay attention to the load class and operating conditions.

How to Match Accessories for a Winch Recovery System?

It is essential for you to choose the correct accessories for a winch recovery system. A winch recovery system is only as strong as its weakest link.

Don’t use a 18,000 lbs rope with a 10,000 lbs shackle, a low quality tree saver and an unknown anchor point. This system will distribute the load according to its lowest rating. It may be much lower than the 18,000 lbs indicated on the rope.

Each element of your winch recovery system should have a specified load class, which will form the final rating of the kit. This is an especially important consideration for you to purchase the recovery kits.

Winch Recovery vs Kinetic Recovery: Do You Need Both?

Winch and kinetic recovery systems are complementary, but fundamentally different technologies.

Winch recovery allows for more control over your recovery process and is best suited for your solo recovery on difficult terrain. Kinetic recovery uses a special stretch rope and the inertial force of the second vehicle.

Duracordix offers you both winch and kinetic recovery systems for 4×4 vehicles. The two systems are often positioned as a winning combination for serious off-road recovery.

OEM & Private Label Considerations When Buying Winch Recovery Equipment

Duracordix offers you private-label solutions, custom diameters and lengths, special weaving technology, terminations and packaging for its off-road rope and recovery gear products.

When purchasing a winch recovery system, you can customize:

• the diameter and length of the rope;
• the fiber grade, coating and color of the rope;
• eye and sleeve design;
• shackle size;
• tree saver size;
• recovery ring or snatch block;
• logos, barcodes, warning labels;
• instructions for use;
• a storage bag;
• retail packaging.

So all of our products should be developed as a complete turnkey solution, not just buying the rope and packing it in a box.

What Test Data Should You Request When Purchasing Winch Recovery Systems Components?

When purchasing components for your winch recovery system, it is important to request detailed test data from Duracordix, not just a catalog number.

The details that may be useful to you includes:

• breaking-strength data;
• material;
• size specifications;
• production batch details;
• splice inspection;
• accessory rating;
• label verification;
• sample test results.

If your country has specific product certification or labeling requirements, please ensure you clarify this before purchasing your winch recovery kits.

What Factors Affect the Cost of a Winch Recovery System?

The cost of your winch recovery system is affected by several factors, including:

• UHMWPE fiber specification;
• rope diameter;
• rope length;
• coating;
• sleeve;
• splice technology;
• soft shackles;
• tree saver strap;
• recovery ring or snatch block;
• bag;
• custom color, logos, warning labels;
• retail box;
• testing;
• the volume of the order.

When you’re comparing prices, it is important to take into account the full configuration of the winch recovery system kits, not just the price of the rope.

Send Your Inquiry

FAQs

Answers to Your Winch Recovery System Questions – Get Informed!

Can you help us match the rope and accessories to our winch?

Yes. You should specify your target vehicle weight, winch rated line pull, desired rope length and market application.

Our team is able to recommend you the appropriate rope diameter, minimum breaking load and relevant accessories rather than specifying individual components.

What is the MOQ for a customized winch recovery kit?

MOQ will be calculated in accordance with your degree of customization, components of your products and colors and packing you required.

The standard rope and accessories can reach a lower MOQ (50 kits or 100 kits). But if it's a fully customized winch kit for retail purpose may need higher MOQ. We can help to recommend the quantity according to your plan of products.

Can you provide samples and test documentation before bulk production?

Yes, They can be provided. According to the demand of your project, Duracordix can prepare the specification, breaking strength documents, material inspection documents etc. of the products for your examination and approval

Can Duracordix provide OEM or private label recovery gear?

Yes. Duracordix does OEM and private-label projects for your 4×4 brands, our distributors and wholesalers.

The rope diameter, length, coating, color, sleeves, accessories, logos, labels, instructions, carry bags and retail packaging can be customized according to your target market.

What information do you need for a quotation?

For more accurate quotation, you should give us the target category of vehicles, weight of target vehicles, required winch capacity, preferred rope diameter and length. Alslo required accessories, target market, brand and packing requirement, quantity of order, documentation and test requirement should be provided.

Can Duracordix supply complete 4x4 recovery kits?

Yes. Duracordix can supply you with complete winch recovery systems including UHMWPE winch ropes, HMPE soft shackles, tree saver straps, recovery rings. You can also put snatch blocks, winch dampers, gloves into the storage kit bags.

Your Kits can be configured around UTV, SUV, pickup, heavy 4x4 or professional rescue applications.
